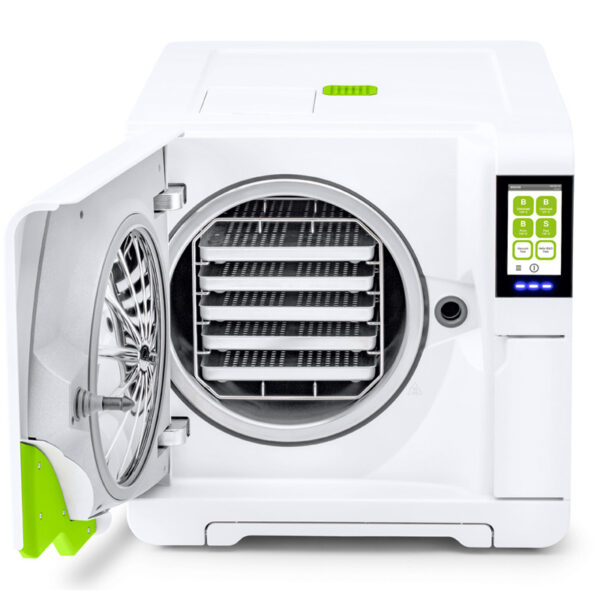

W&H Lisa Autoclave

Description

W&H Lisa Autoclave | B Type Sterliliser with 17L and 22L Chamber sizes.

B Type vacuum sterilizer designed for all types of loads – solid, hollow & porous loads – with S type capabilities included

Cycle Times

0.5 -2.kg           Fast cycle                                 13-21 minutes– unwrapped load
2.0kg                Average load Eco Dry+              28 minutes – wrapped load (17L & 22L)
4.5 kg               Maximum load Eco Dry+            41 minutes – wrapped load (17L only)
6.0kg                Maximum load Eco Dry+            45 minutes – wrapped load (22L only)

W&H Lisa comes with the following:

• EliSense: Thanks to LED indicators and display the outstanding technology offers cycle status information, temperature information and much more to optimize both workflow and output at a glance.
• EliTrace: For the first time, the sterilization process can be traced and documented down to the individual instrument or instrument kit. Without additional software or computer.
• Eco Dry+ : Eco Dry technology adapts the drying time to the mass of the load. This reduces the cycle time, increases the life span of your instruments and optimizes the energy consumption.
• Fast Cycle
• Touchscreen interface
• 5 Trays
• 8GB USB data logger
• Wi-Fi kit (optional)
• Easy fill or automatic fill from RO system

Incredible usability thanks to EliSense

EliSense Smart Sense tells you
› When to replace Multidem.
› How to optimize drying.
› When it is possible to perform the vacuum test based on the temperature of the chamber.
› When the next tests depending on local legal requirements are needed

EliSense Temperature Sense : Safer work.
EliSense doesn’t only care for the well-being of the sterilizing process but also of yours: by warning you if you have already opened the door, but the load is still too hot to be touched without gloves or a tray holder.

Incredible usability thanks to interface

The Lisa crystal clear colour touchscreen not only offers EliSense. It offers the entry to an intelligent menu structure with a wide range of options to make your daily work easier, faster, and more efficient.

Simple cycle selection

As soon as the Lisa is switched on, the home screen immediately displays the cycle selection.

Risk-free cycle selection:
The custom cycle selection feature allows you to select which cycles are displayed on the home screen.
User guidance:
Instruction is available with the help button in order to assist you during navigation.
Guided maintenance:
A set of 3-D animations shows you the main maintenance operations step by step.
Makes operation easy and straightforward.

Easy filling:
A high capacity integrated funnel prevents water splashes during the water filling process.
Simple cleaning Thanks to a smooth surface design with minimized gaps.
High convenience: An automatic water filling valve allows you to connect a demineralization system. Manual filling and draining are no longer required.
Fits everywhere:
With the modular front feet, Lisa can be installed on the narrowest benches.
Practical design:
Lisa can be built into a cabinet thanks to the optimized internal air circulation.
Effortless tank access:
The tank cover can be easily removed without tools to clean the tanks.
